Eco Water System
Efficient
- Smart memory monitors household water usage and programs itself accordingly, ensuring that softened water is always available on demand.
- EcoWater’s unique proportional brining system results in less salt and water usage than conventional softeners.
- High performance advanced resin allows for compact, space saving units with a high softening capacity.
- High flow rates and low pressure loss are ideal for direct mains fed systems, Jacuzzis, combi boilers etc.
Intelligent
- Easy to use controls, with information at your fingertips.
- Unique capacity bar shows at a glance how much softening capacity remains
- Rolling screen provides continuous up-to-date information on the performance of the softener.
- EcoWater unique EASE facility allows remote diagnostics and machine performance data.
- Optional remote salt monitor available.
Reliable
- 72-hour power loss back up protects the softener’s memory during power cuts.
- Durable and reliable heavy-duty rotary valve.
- High density polyethylene salt storage cabinet.
- Reinforced fibreglass resin tank, pressure tested up to 8.6 bar (125psi) with a 10 year warranty against manufacturing defects.
Safe
- Tested and approved to the highest standards.
- Double safety shut-off valve.
- 24-volt transformer for safer electrical supply.
|
|
|

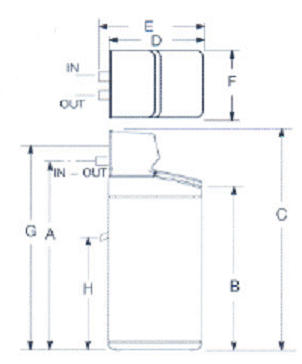

Specifications
|
ESM9
|
ESM11
|
ESM15
|
3000R30
|
|
A: Inlet/Outlet Height
|
415mm
|
532mm
|
700mm
|
1003mm
|
|
B: Height to salt lid
|
291mm
|
414mm
|
575mm
|
N/A
|
|
C: Total Height
|
545mm
|
668mm
|
838mm
|
1145mm
|
|
D: Depth
|
430mm
|
430mm
|
430mm
|
508mm
|
|
E: Total Depth Including Connections
|
463mm
|
463mm
|
463mm
|
595mm
|
|
F: Width
|
317mm
|
317mm
|
317mm
|
350mm
|
|
G: Drain Height
|
460mm
|
584mm
|
756mm
|
1010mm
|
|
H: Overflow height
|
224mm
|
305mm
|
469mm
|
725mm
|
|
Resin Volume
|
9.9 litres
|
10.5 litres
|
14.7 litres
|
25 litres
|
|
Salt used per regeneration
(proportional)
|
0.39-1.54kg
|
0.42-1.63kg
|
0.7-3.8kg
|
1.7-5.0kg
|
|
Water used per regeneration
|
45 litres
|
49 litres
|
52 litres
|
166 litres
|
|
Maximum daytime working pressure
|
4.76 bar
|
4.76 bar
|
4.76 bar
|
4.76 bar
|
|
Recommended minimum daytime
working pressure
|
1.7 bar
|
1.7 bar
|
1.7 bar
|
1.7 bar
|
|
Electrical supply via transformer
|
24V 50Hz
|
24V 50Hz
|
24V 50Hz
|
24V 50Hz
|
|
Maximum flow rate (peak)
|
3.4m3 /h
|
3.2m3 /h
|
3.1m3 /h
|
5.0m3/h
|
|
Salt storage capacity
|
20kg
|
32kg
|
45kg
|
90kg
|
|
Maximum softened water @ 300ppm
|
1690 litres
|
2400 litres
|
3667 litres
|
5400 litres
|
|
People days capacity @ 300ppm
(based on 160l/day)
|
10
|
15
|
22
|
33
|
Installation
Maximum flow rates are calculated using 22mm copper pipe. Unvented or direct systems, which require high flow rates, can be plumbed in using 22mm or 28mm pipework as required. Flexible hoses, for higher flow rates, are available with ¾ “ BSP and 1” BSP connections. If the daytime pressure exceeds 4.76 bar, a pressure-reducing valve will be required.
Units to be installed in accordance with local water authority regulations, which may also require on internal tap remaining unsoftened for drinking purposes. This applies to all water softener installations.
|
|
|
|
